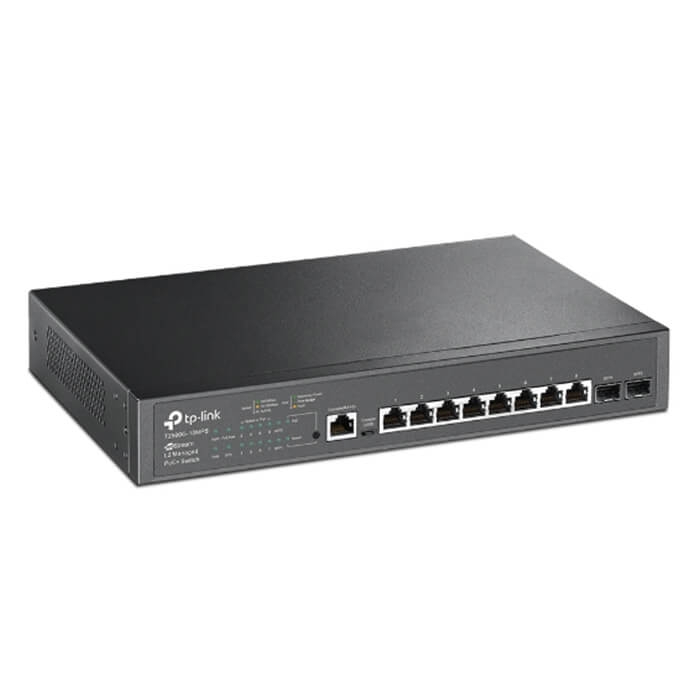

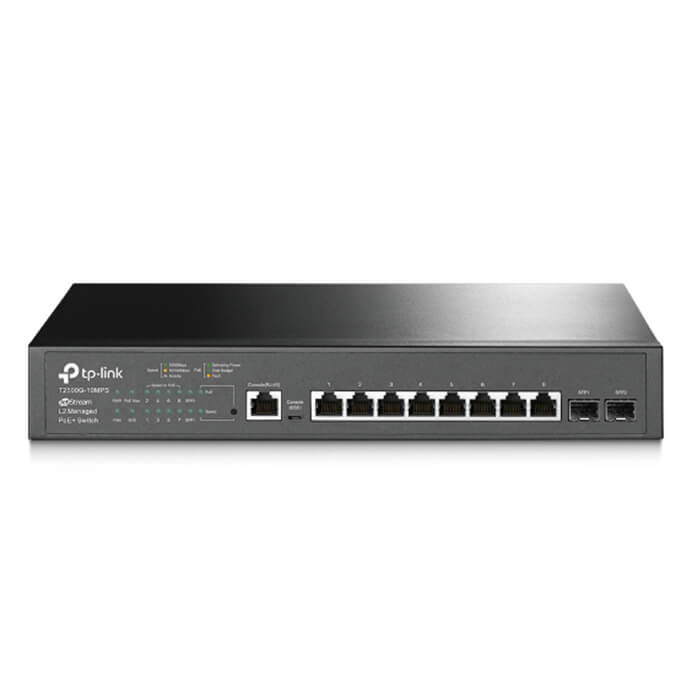

| Model | T2500G-10MPS |
| Hardware | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | 8 10/100/1000Mbps RJ45 ports, all supporting PoE+ 2 Gigabit SFP Slots 1 RJ45 Console Port 1 Micro-USB Console Port |
| Fan Quantity | 1 |
| Power Supply | 100~240VAC, 50/60Hz |
| PoE Budget | 116W |
| Dimensions | 294 × 180 × 44 mm |
| Performance | |
| Bandwidth/Backplane | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4MB |
| Jumbo Frame | 10KB |
| Software | |
| Quality of Service | 802.1p CoS/DSCP priority 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L2 Features | IGMP Snooping v1/v2/v3 MLD v1/v2 Snooping 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP Port isolation BPDU filtering/guard TC/Root protect Loop back detection 802.3x Flow Control LLDP/LLDP-MED DHCP VLAN Relay L2PT |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN GARP/GVRP VLAN VPN (QinQ) Management VLAN configuration |
| Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID; Time Range Based |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 CPU Monitoring Port Mirroring Dual Image Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
