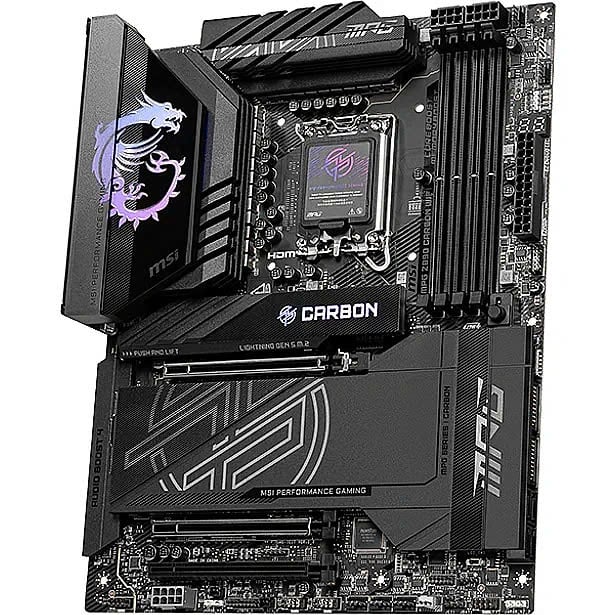

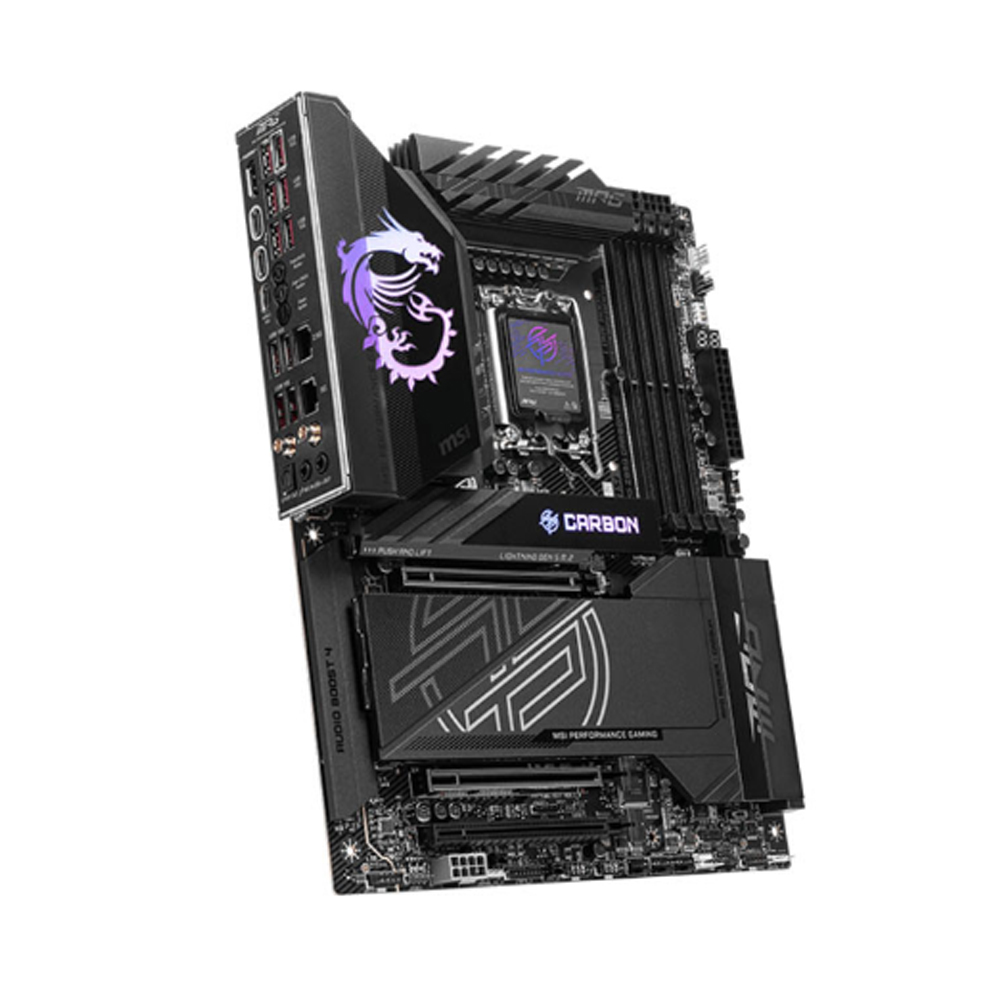

Mainboard MSI MPG Z890 CARBON WIFI (Intel Z890/ Socket 1851/ ATX/ 4 khe ram/ DDR5/ 5Gbps LAN)
| Chipset | Intel Z890 |
| Socket | Intel LGA 1851 |
| Kích thước Main | ATX |
| Hỗ trợ CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. Overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Card đồ họa | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz |
| Kết nối mạng | Intel® Killer™ E5000 5Gbps LAN,1x Intel® I226V 2.5G LAN |
| Thông số (Lan/Wireless) | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |
| Khe cắm trong | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G |
| Khe cắm mở rộng | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Cổng giao tiếp ngoài | USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Wi-Fi / Bluetooth Optical S/PDIF Out |
| Âm thanh | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
