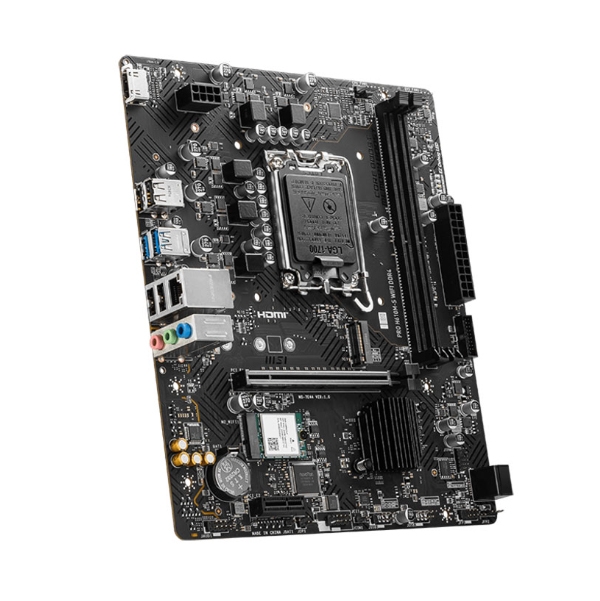

Mainboard MSI PRO H610M-S WIFI DDR4 (Intel H610/ Socket 1700/ M-ATX/ 2 khe ram)
| Chipset | Intel H610 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Supports 12th 13th 14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Card đồ họa | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Khe cắm trong | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Khe cắm mở rộng | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
| Cổng giao tiếp ngoài | HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0 |
| Âm thanh | 8-Channel (7.1) HD Audio with Audio Boost |
