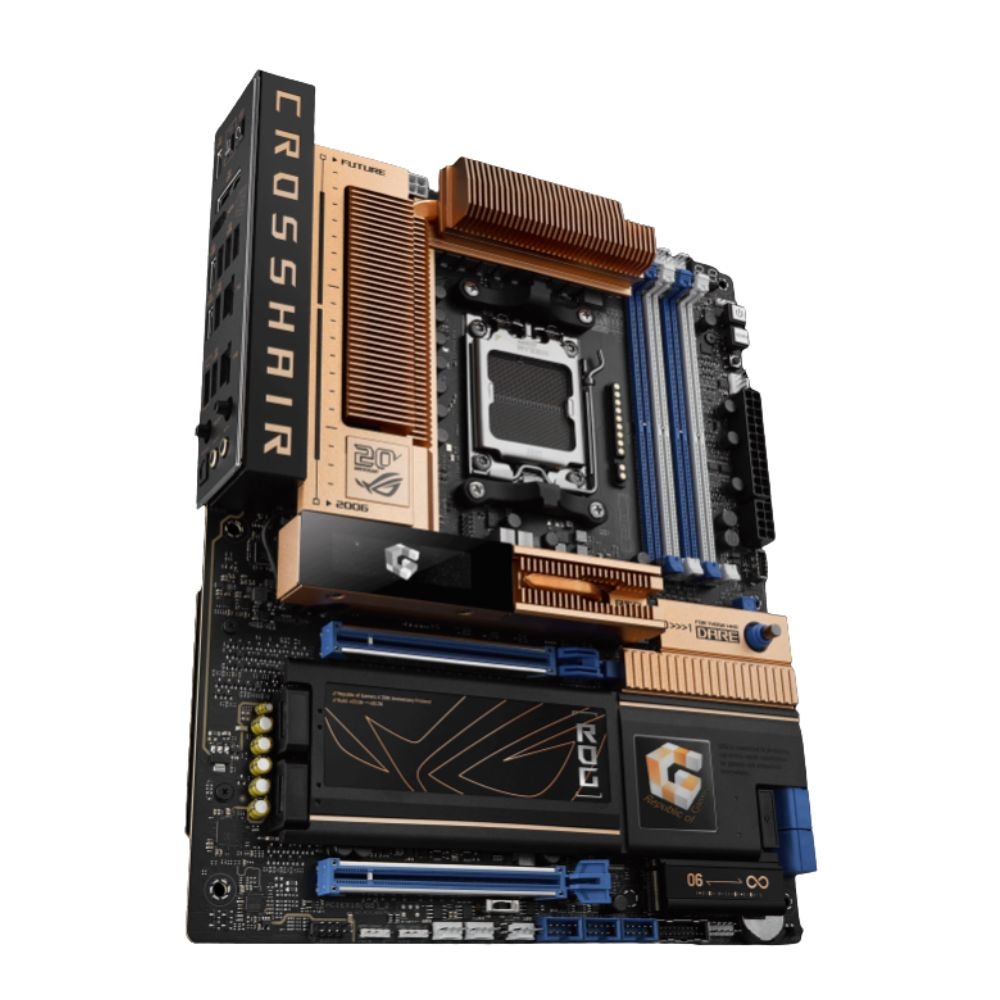

Mainboard Asus ROG CROSSHAIR 2006 (AMD X870/ Socket AM5/ ATX/ 4 khe ram)
| Chipset | AMD X870 |
| Socket | Socket AM5 |
| Kích thước Main | ATX |
| Hỗ trợ CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8600+MT/s(OC)/8200+MT/s(OC)with Ryzen 9000 Series Processors, 9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) |
| Chi tiết Vga | 1 x HDMI™ port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Kết nối mạng | 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet |
| Thông số (Lan/Wireless) | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4 |
| Khe cắm trong | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), |
| Khe cắm mở rộng | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen 8500 & 8300 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4) |
| Cổng giao tiếp ngoài | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Âm thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
