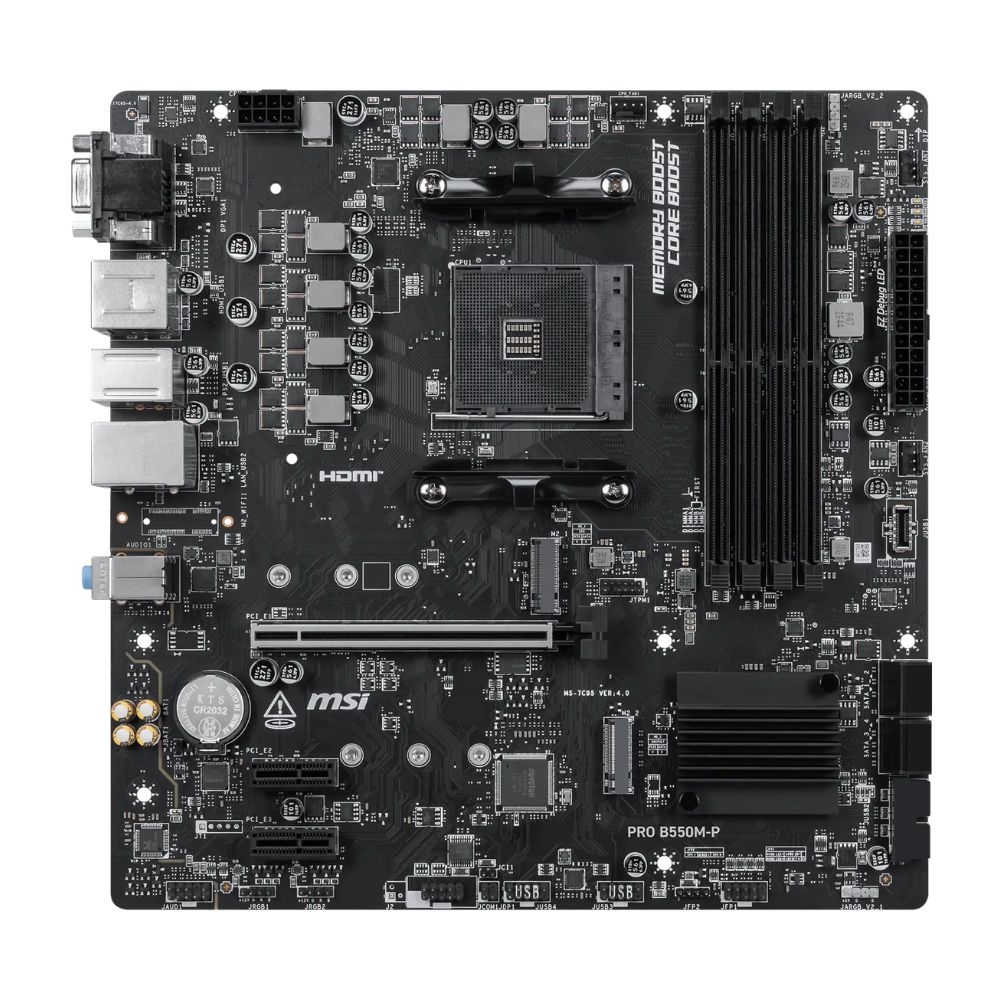

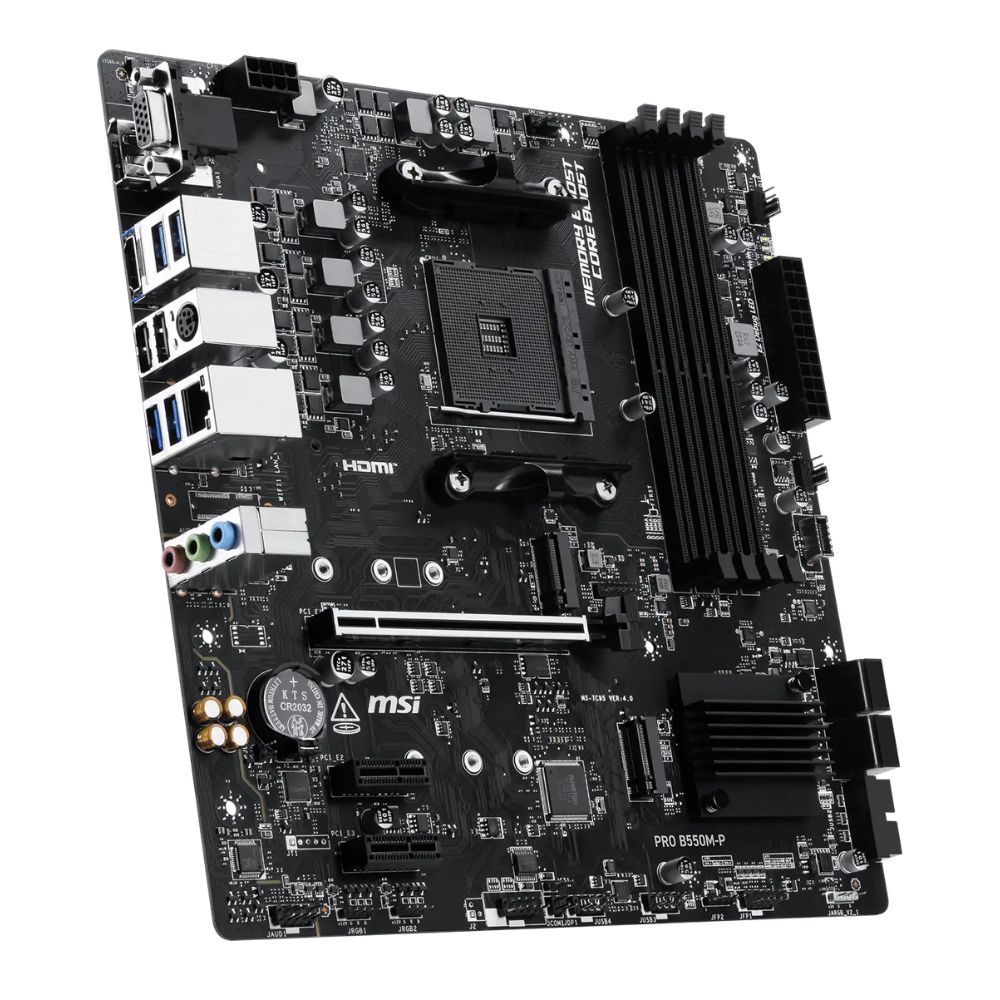

Mainboard MSI PRO B550M-P (AMD B550/ Socket AM4/ M-ATX/ 4 khe ram)
| Chipset | AMD B550 |
| Socket | Socket AM4 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. Overclocking: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode |
| Chi tiết Vga | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Realtek® RTL8111H Gigabit LAN |
| Khe cắm trong | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Khe cắm mở rộng | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |

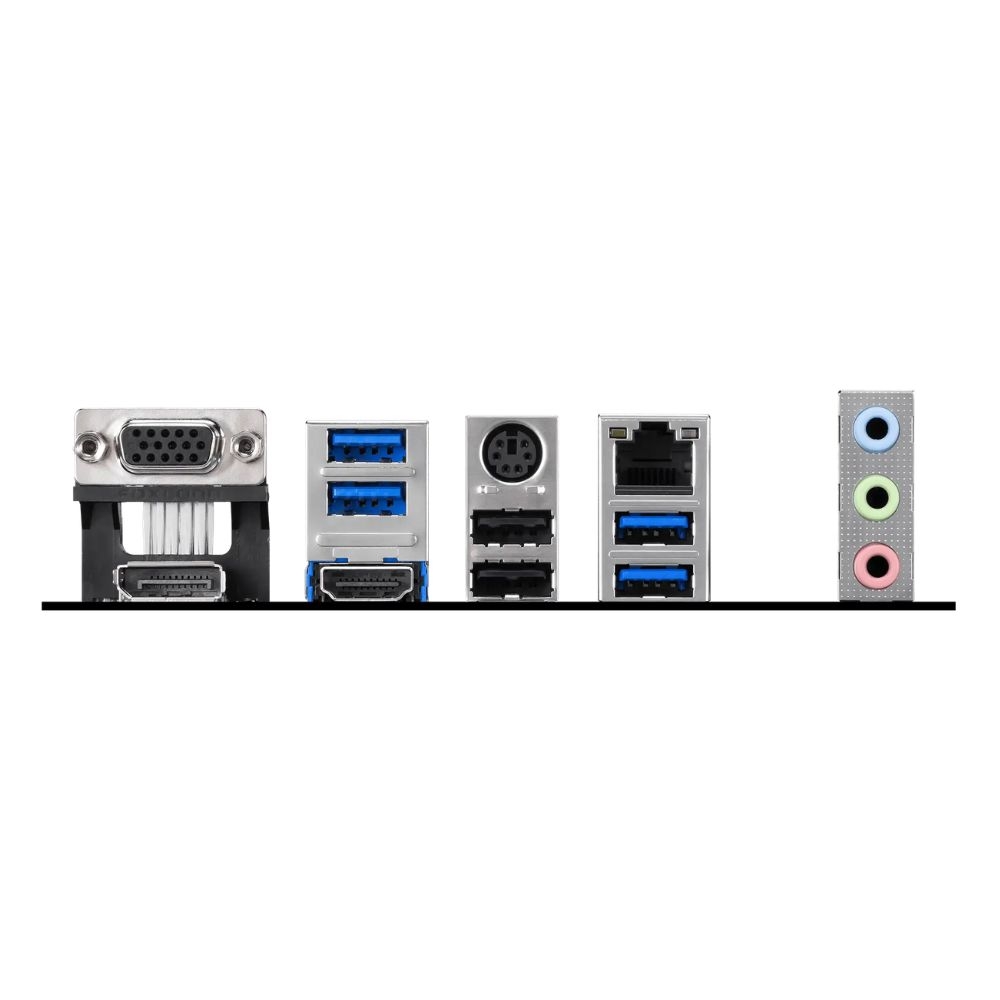

| Cổng giao tiếp ngoài | VGA USB 5Gbps Type-A Keyboard / Mouse LAN Port Audio connectors DisplayPort HDMI™ USB 2.0 USB 5Gbps Type-A |
| Âm thanh | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
