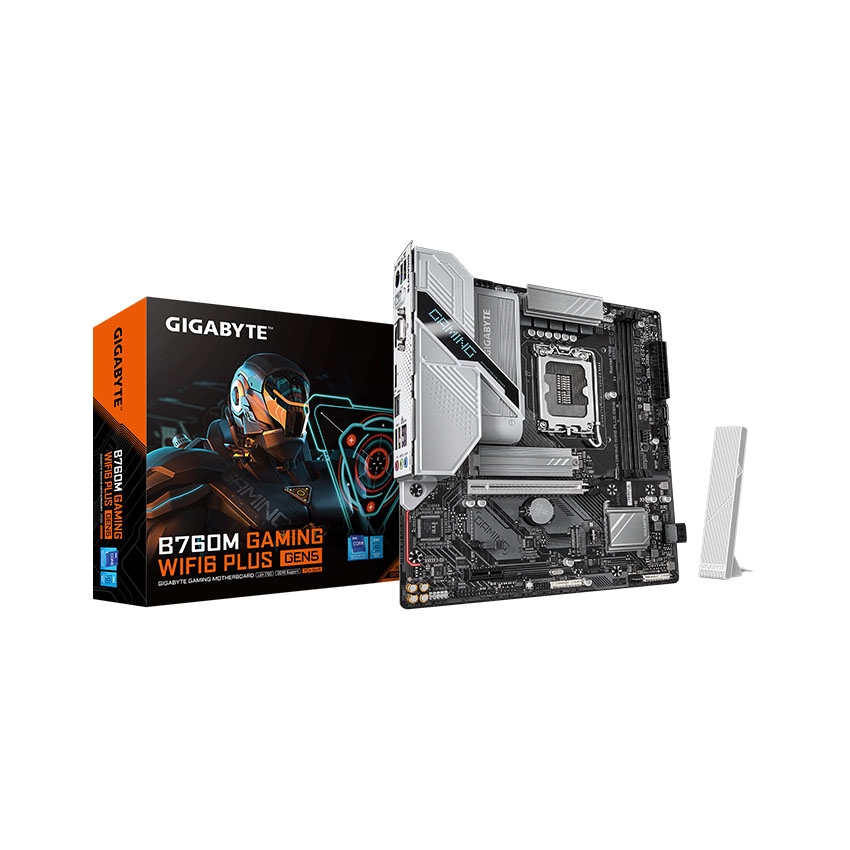

Mainboard Gigabyte B760M GAMING WIFI6 PLUS GEN5 (Intel B760/ Socket 1700/ M-ATX/ 2 khe ram/ DDR5/ 2.5 Gigabit LAN)
| Chipset | Intel B760 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture |
| Chi tiết Vga | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Khe cắm trong | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Khe cắm mở rộng | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 ( The PCIEX16 slot can only support a graphics card or an NVMe SSD). Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Cổng giao tiếp ngoài | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (1T1R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| Âm thanh | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
