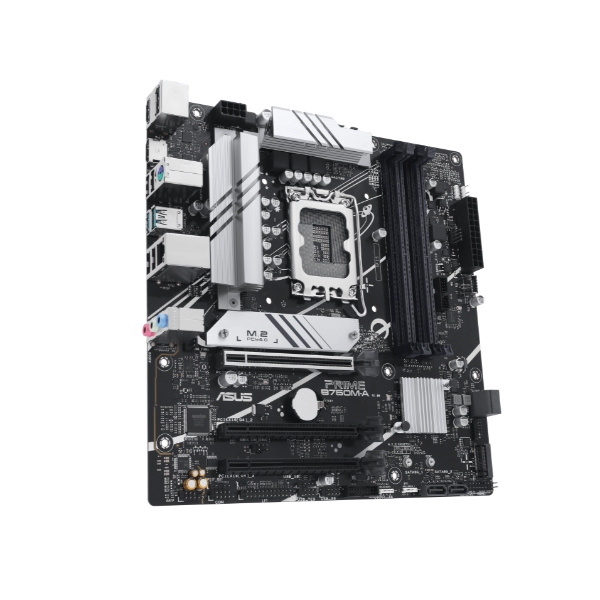

Mainboard Asus Prime B760M-A CSM D5 (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
- Chipset: Intel B760
- Socket: Intel LGA 1700
- Kích thước Main: M-ATX
- Hỗ trợ CPU: Intel® Socket LGA 1700:Support 14th 13th and 12th Gen Series Processors
- Khe cắm RAM: 4 khe ram
- Loại RAM: DDR5
Cấu hình Mainboard Asus Prime B760M-A CSM D5 (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
| Chipset | Intel B760 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Intel® Socket LGA 1700:Support 14th 13th and 12th Gen Series Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory |
| Chi tiết Vga | 1 x DisplayPort 2 x HDMI® ports |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | 1 x Realtek 2.5Gb Ethernet |
| Khe cắm trong | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Khe cắm mở rộng | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |

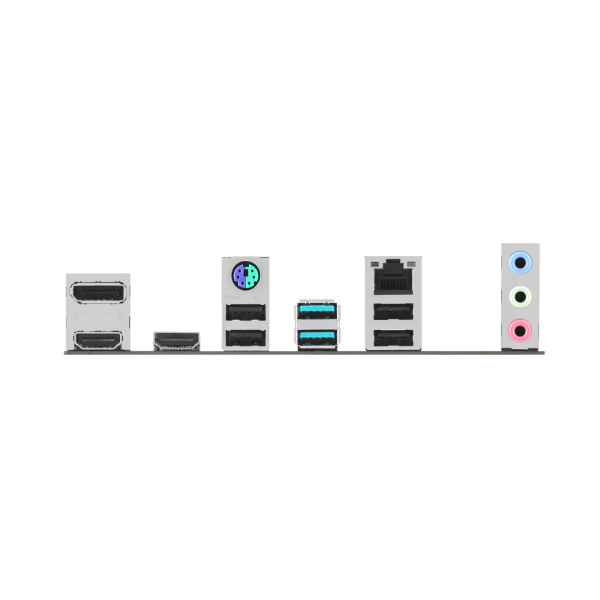

| Cổng giao tiếp ngoài | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
