THÔNG SỐ KỸ THUẬT
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3 an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |

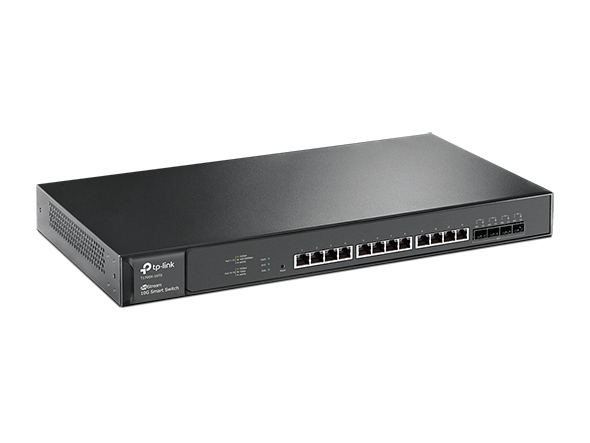

| Interface | 12 100/1000/10GBase-T RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10G SFP+ Slots |
| Network Media | 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 10GBase-T: UTP CAT 5e, 6 (Maximum 55m) or above cable (Maximum 100m) 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
| Fan Quantity | Two Smart Fans |

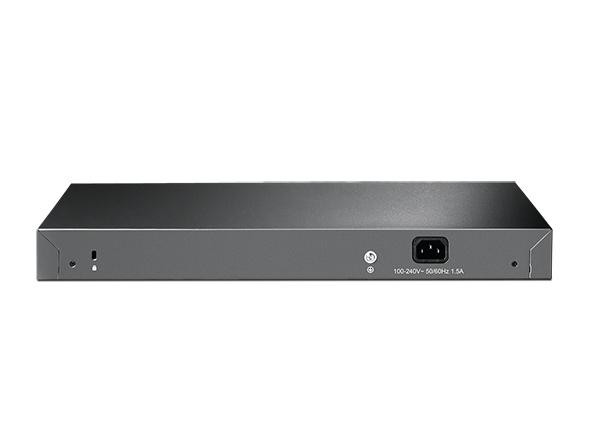

| Power Supply | 100-240V, 50/60Hz |
| Dimensions ( W x D x H ) | 17.3 * 8.7 * 1.73 in. (440 * 220 * 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 76.58W |
| Max Heat Dissipation | 261.29 BTU/h |
| PERFORMANCE | |
| Switching Capacity | Up to 320Gbps |
| Packet Forwarding Rate | Up to 238.1Mpps for a standalone switch |
| MAC Address Table | 16K |
| Packet Buffer Memory | 2MB |
| Jumbo Frame | 9KB |
| Number of Static Routes | 32 IPv4 |
| Number of IP Interfaces | 16 |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS* Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay* IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED* |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN Private VLAN |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports IPv6 ACL* |
| Security | AAA* Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | T1700X-16TS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8/8.1, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
