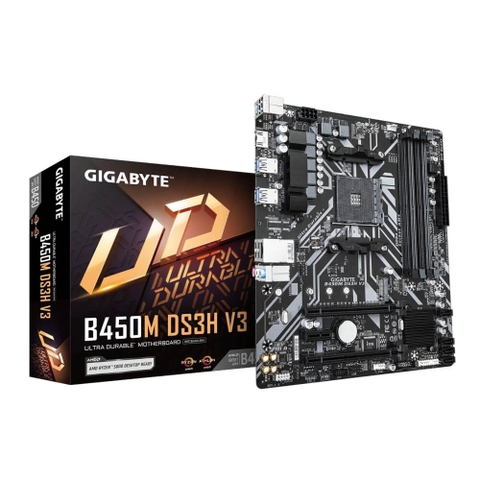

Mainboard Gigabyte B450M DS3H V3 (AMD B450/ Socket AM4/ M-ATX/ 4 khe ram/ DDR4)
| Chipset | AMD B450 |
| Socket | Socket AM4 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Card đồ họa | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Ealtek® GbE LAN chip (10/100/1000 Mbit) |
| Khe cắm trong | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| Khe cắm mở rộng | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Cổng giao tiếp ngoài | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Âm thanh | Realtek® Audio CODEC |
