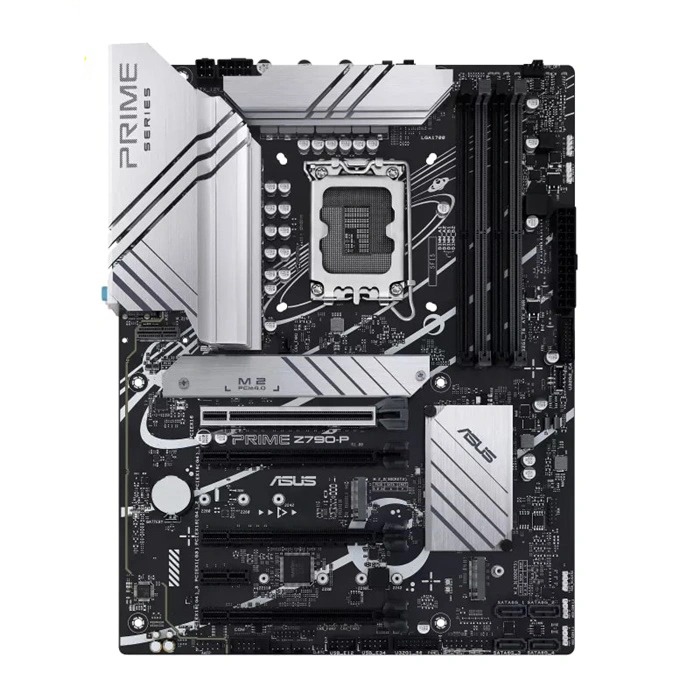

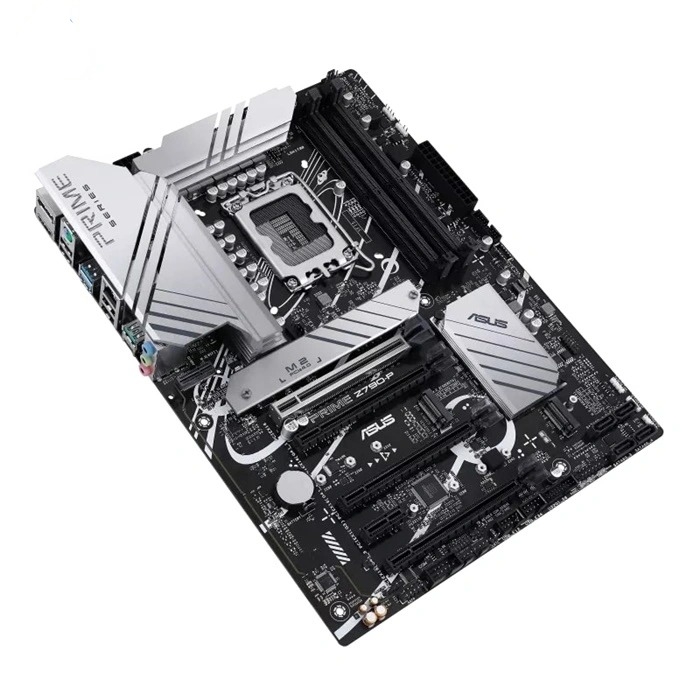

Mainboard Asus PRIME Z790-P-CSM DDR5
- Socket: Intel Socket LGA1700 hỗ trợ CPU intel thế hệ 13,Intel thế hệ 12. Pentium® Gold and Celeron® Processors
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 126GB)
- Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
- Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports
Thông số chi tiết
|
Sản phẩm |
Bo mạch chủ |
|
Tên Hãng |
Asus |
|
Model |
PRIME Z790-P CSM |
|
CPU hỗ trợ |
Intel |
|
Chipset |
Intel Z790 Chipset |
|
RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)
5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
|
Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot |
|
Ổ cứng hỗ trợ |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports |
|
Cổng kết nối (Internal |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header |
|

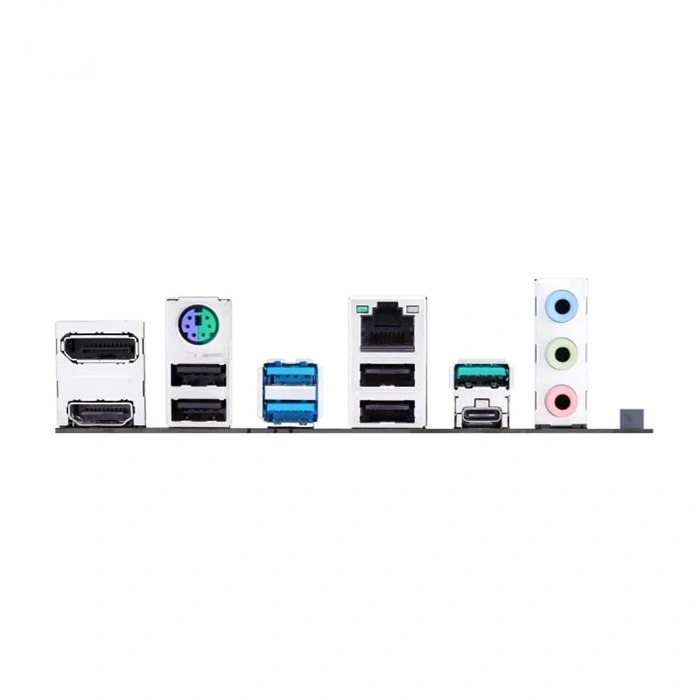

Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port |
|
LAN / Wireless |
Vertical M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
1 x Realtek 2.5Gb Ethernet |
|
Kích cỡ |
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm |
